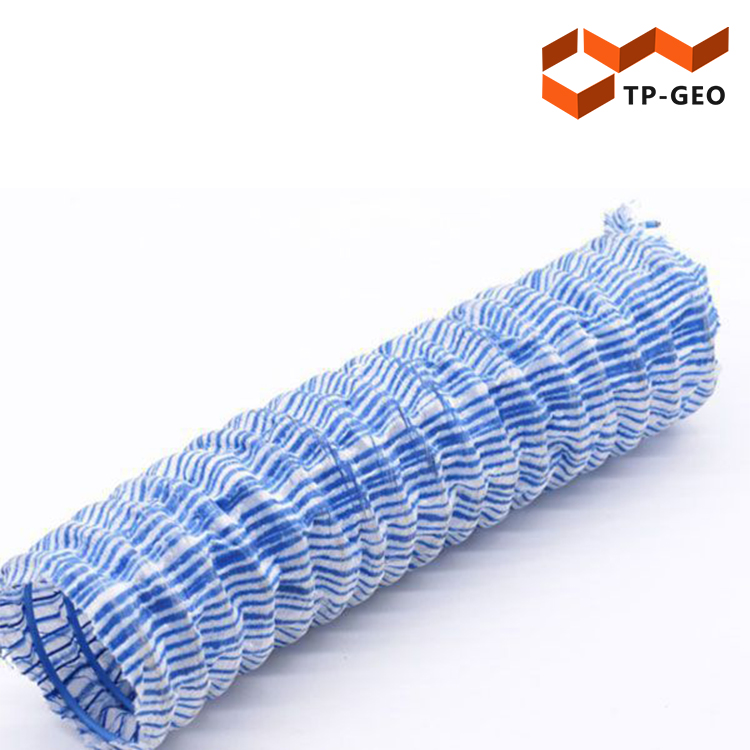

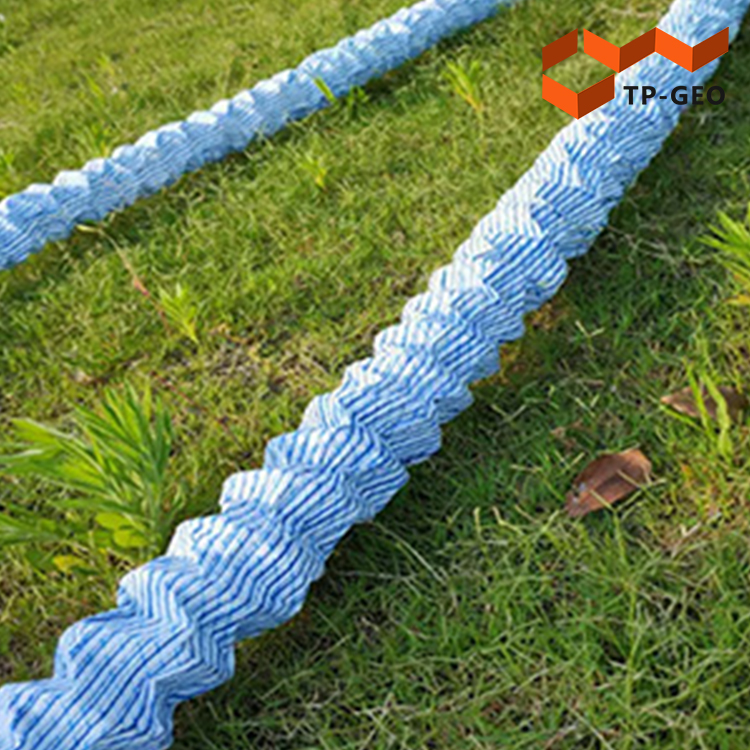

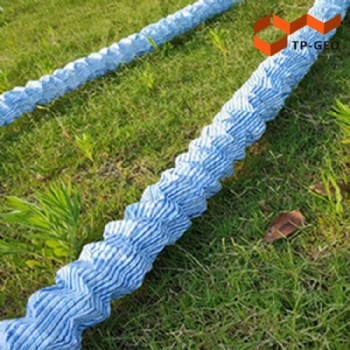

Soft Permeable Pipe

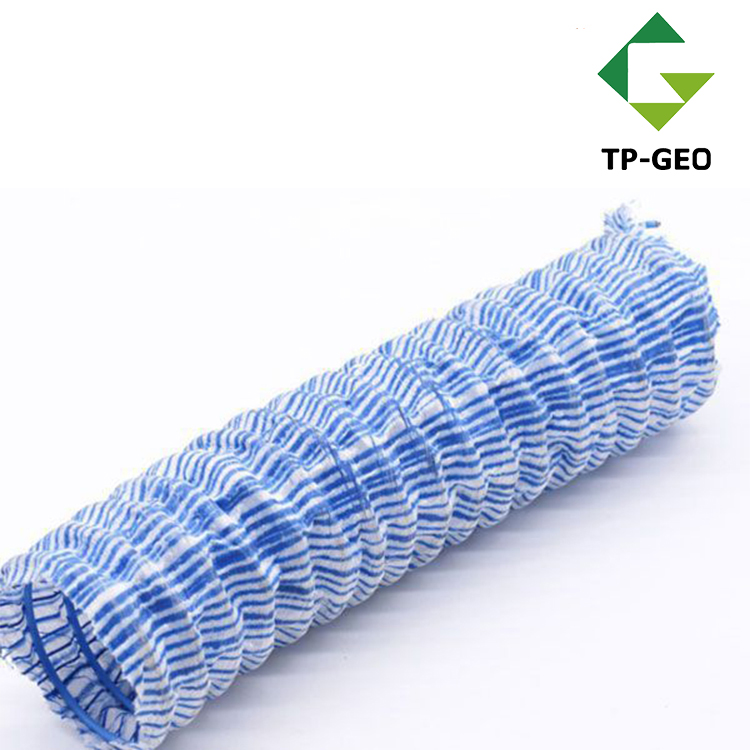

A permeable pipe with a frame structure composed of steel wire and PVC. With a full range of filtration through the whole body and quickly and effectively remove groundwater, high permeability, large displacement, replacing the traditional PVC perforated pipe drainage water. Easy to use, high efficiency advantages.

Inquiry Now

Description

// APPLICATION SCENARIO //

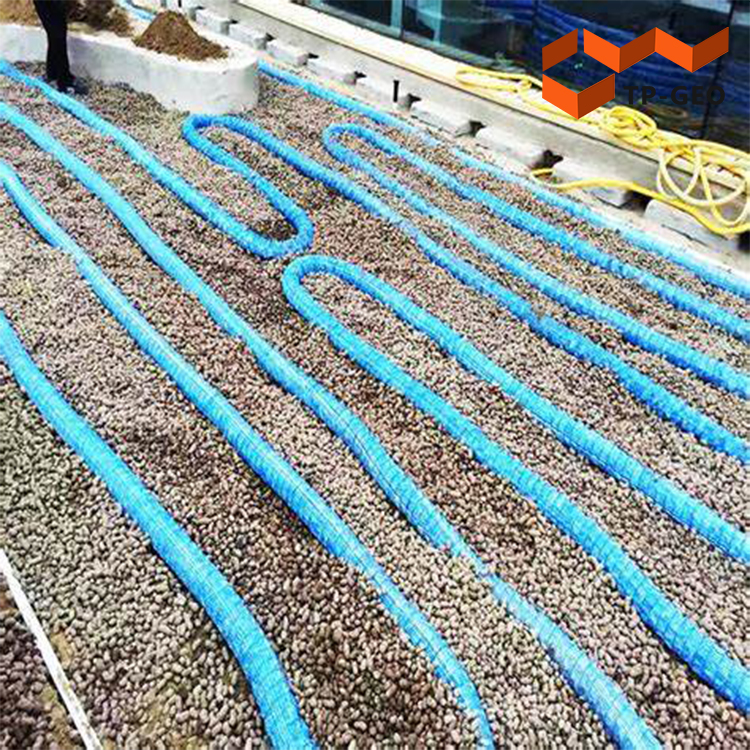

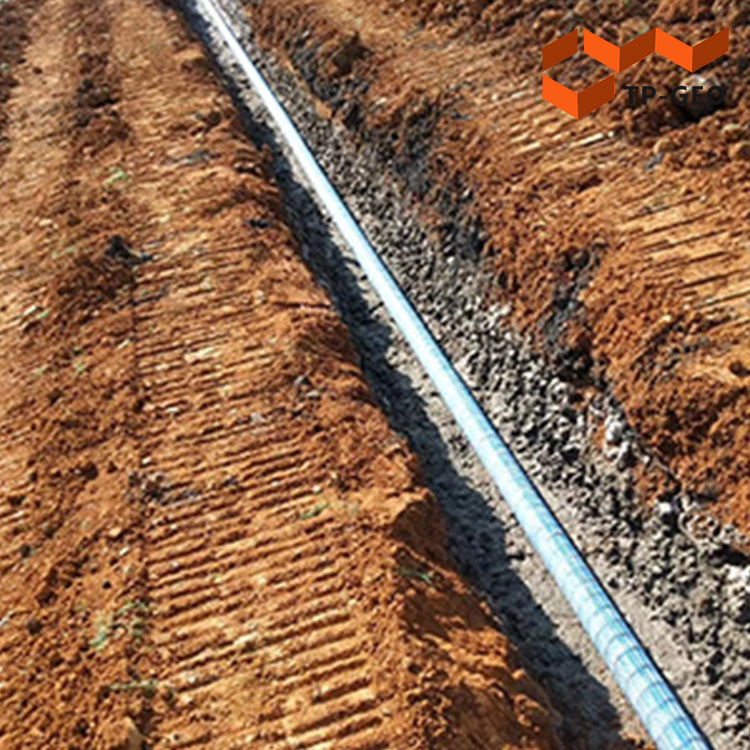

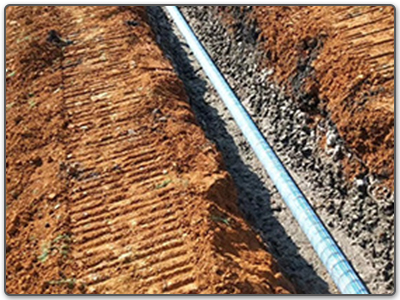

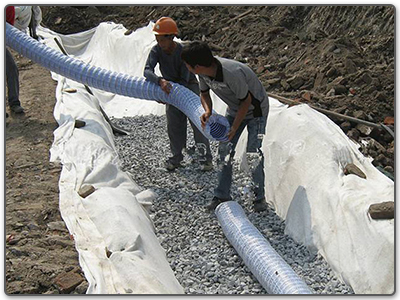

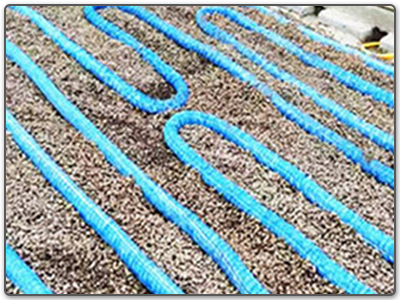

Subgrade drainage	Engineering drainage	Soft ground drainage

// PRODUCT PARAMETER //

Item		Unit	Index
specification		mm	30	50	80	100	150	200	300
Longitudinal pull strength		Kn/5cm≥	1.0
Longitudinal elongation		%	18-30
Transverse pull strength		Kn/5cm≥	2.2
Lateral elongation		%	18-30
Bursting strength		Kn≥	1.1
Flow rate		c㎥/s10	0.18	0.44	1.672	3.032	8.839	19.25	50.2
Permeability coefficient（k20）		cm/s≥	0.1
Equivalent aperture（O04）		mm	0.05-0.12
Compressive strength （KPa）	2%	N	150	200	450	800	1000	950	900
	3%	N	400	500	800	1300	1500	1500	1100
	4%	N	750	800	1400	1600	2000	1800	1500
	5%	N	1200	1500	1800	2200	2500	2300	2000
	10%	N	2600	3000	3000	4200	4750	4500	3500

// COMPANY PRESENTATION // 未标题-4.jpg

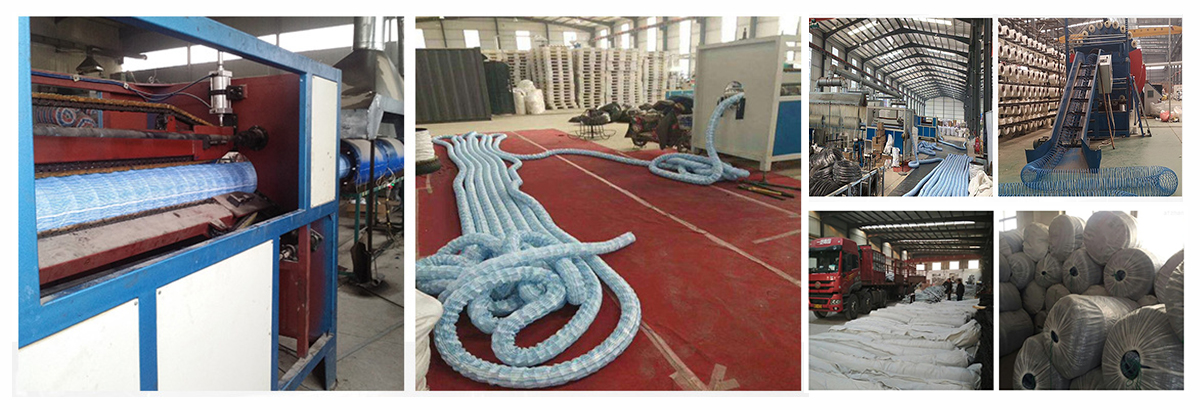

// EQUIPMENT // 透水管.jpg // LABORATORY // 未标题-1.jpg

// HONOR //


// PROJECT ENGINEERING //


	Engineering case	Supply product
1	Coal power project ash landfill project	1.0mm HDPE Geomembranes
2	Potassium salt seepage control system engineering	1.0mm HDPE Geomembranes
3	Expressway reconstruction and expansion project	Biaxial Plastic Geogrid
4	Chemical gypsum slag field seepage prevention project	1.5mm HDPE Geomembranes
5	Calcium free chromium residue wet detoxification and chromium recovery project	2.0mm HDPE Geomembranes
6	Reservoir EPC general contracting project	Biaxial Plastic Geogrid
7	Eco-city infrastructure project	Uniaxial Plastic Geogrid / Biaxial Plastic Geogrid
8	Sewage diversion and biogas diversion project of domestic waste landfill	2.0mm HDPE Geomembranes
9	Lithium mine road expansion project	Uniaxial Plastic Geogrid / Biaxial Plastic Geogrid
10	Livestock and poultry waste disposal and utilization project top membrane project	1.0mm HDPE Geomembranes
11	Heavy metal waste resource harmless disposal project rigid landfill project	2.0mm HDPE Geomembranes
12	Power plant dust ash landfill project	1.0mm、1.5mm HDPE Geomembranes
13	Highway expansion B5 project	Uniaxial Plastic Geogrid / Biaxial Plastic Geogrid
14	landfill storage pool covering project	2.0mm HDPE Geomembranes
15	Emergency landfill project Geotechnical material laying project in the second landfill area	1.5mm 2.5mm HDPE Geomembranes
The project is constantly updated
