Corrugated Pipe

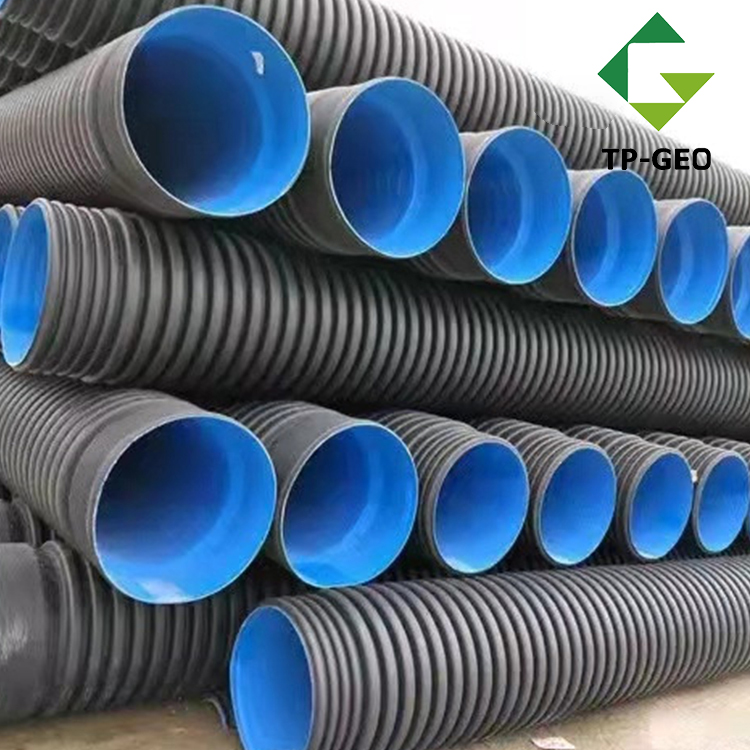

Two automatic high-precision extrusion plasticizing materials are used, the material is passed through the composite head, and two concentric tubes with equal wall thickness are formed through the composite head material, which enter the forming machine and the module group and the forming cavity, and vacuum between the outer modules to make the outer layer close to the module at the same time, compressed air is injected between the inner and outer layers, so that the inner and outer layers at the wave peak are pressed together to form the inner wall smooth. Double wall wave tube with concave and convex outer wall. displacement and shear stress

Inquiry Now

Description

// APPLICATION SCENARIO //

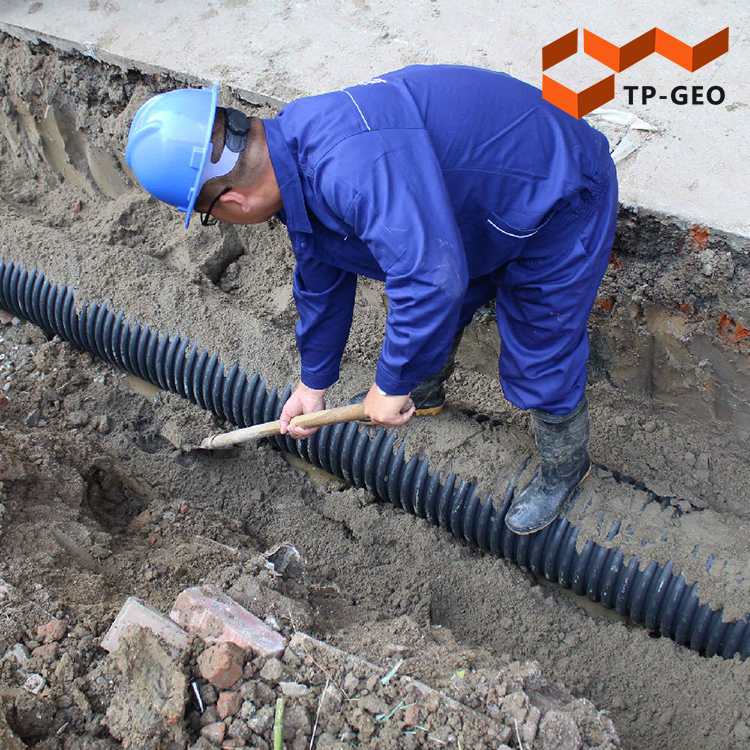

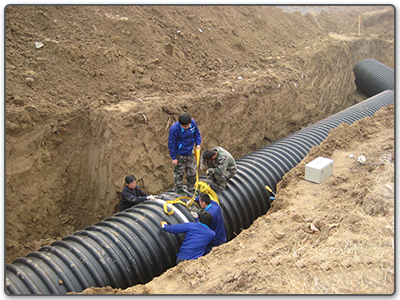

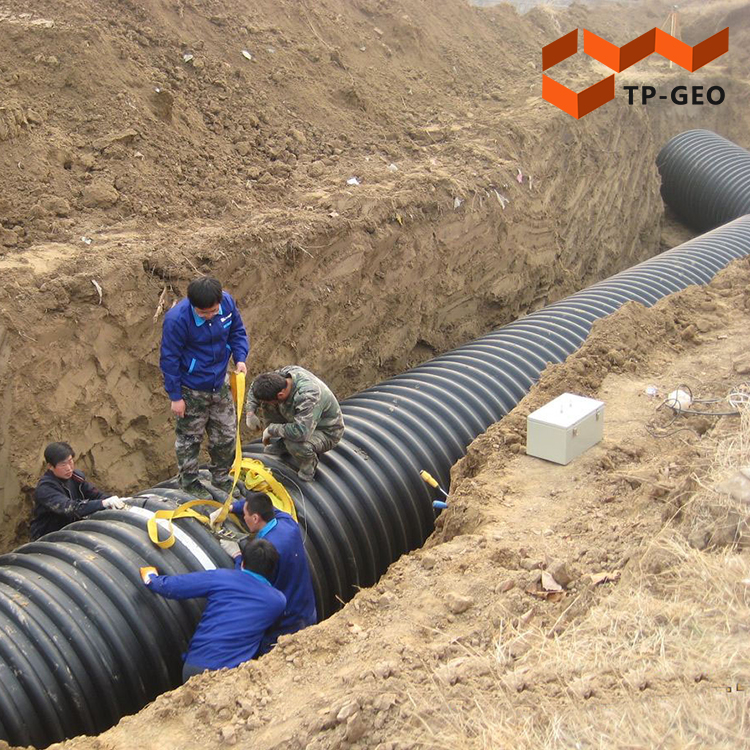

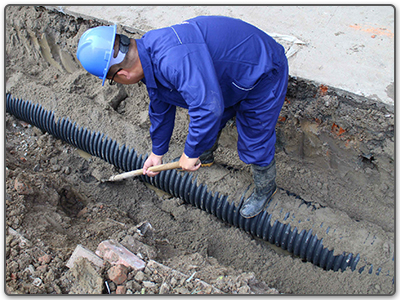

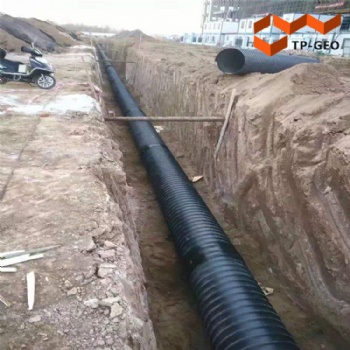

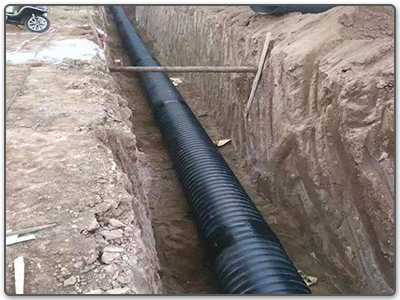

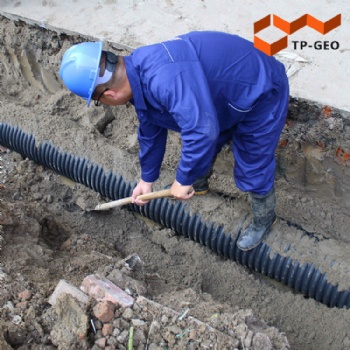

Municipal engineering	Communication protection	Irrigation and drainage of agriculture

// PRODUCT PARAMETER //

Minimum mean outside diameter	Maximum mean outside diameter	Minimum mean inside diameter	Maximum laminate wall thickness	Minimum laminate wall thickness	Joint length
109.4	110.4	90	1.0	0.8	32
124.3	125.4	105	1.1	1.0	35
159.1	160.5	134	1.2	1.0	42
198.8	200.6	168	1.4	1.1	50
248.5	250.8	209	1.7	1.4	55
313.2	316.0	263	1.9	1.6	62
397.6	401.2	335	2.3	2.0	70
497.0	501.3	418	2.8	2.8	80
626.33	631.9	527	3.3	3.3	93
795.2	802.4	669	4.1	4.1	110
994	1003.0	837	5.0	5.0	130
1192.8	1203.6	1005	5.0	5.0	150

// COMPANY PRESENTATION // 未标题-4.jpg

// LABORATORY // 未标题-1.jpg

// HONOR //


// PROJECT ENGINEERING //


	Engineering case	Supply product
1	Coal power project ash landfill project	1.0mm HDPE Geomembranes
2	Potassium salt seepage control system engineering	1.0mm HDPE Geomembranes
3	Expressway reconstruction and expansion project	Biaxial Plastic Geogrid
4	Chemical gypsum slag field seepage prevention project	1.5mm HDPE Geomembranes
5	Calcium free chromium residue wet detoxification and chromium recovery project	2.0mm HDPE Geomembranes
6	Reservoir EPC general contracting project	Biaxial Plastic Geogrid
7	Eco-city infrastructure project	Uniaxial Plastic Geogrid / Biaxial Plastic Geogrid
8	Sewage diversion and biogas diversion project of domestic waste landfill	2.0mm HDPE Geomembranes
9	Lithium mine road expansion project	Uniaxial Plastic Geogrid / Biaxial Plastic Geogrid
10	Livestock and poultry waste disposal and utilization project top membrane project	1.0mm HDPE Geomembranes
11	Heavy metal waste resource harmless disposal project rigid landfill project	2.0mm HDPE Geomembranes
12	Power plant dust ash landfill project	1.0mm、1.5mm HDPE Geomembranes
13	Highway expansion B5 project	Uniaxial Plastic Geogrid / Biaxial Plastic Geogrid
14	landfill storage pool covering project	2.0mm HDPE Geomembranes
15	Emergency landfill project Geotechnical material laying project in the second landfill area	1.5mm 2.5mm HDPE Geomembranes
The project is constantly updated
