Non Woven Geotextiles

These needle-punched geotextiles are made of 100% polypropylene staple fibers, which are formed into a random network for dimensional stability.

Inquiry Now

Description

NON WOVEN GEOTEXTILES

Our non woven Geotextiles provide the containment and erosion control industries with the highest quality geotextiles available. These needle-punched geotextiles are made of 100% polypropylene staple fibers, which are formed into a random network for dimensional stability. They resist ultraviolet deterioration, rotting, biological degradation, naturally encountered basics and acids.

Non woven geotextiles are used in many applications such as drainage, filtration, separation. They function by restricting soil particles but allowing liquid and gases to easily pass through them and are used to improve the performance of environmental and civil construction projects.

Made from PET(polyester) or PP(polypropylene) by nonwoven needle punched manufacturing, it has isolation, filtration, drainage,reinforcement, protection and maintenance etc. fuction.

SPECIFIXATION

(1). 80g/m2~1000g/m2

(2). 1m~8m in roll width, the length as client's request.

(3). Color: white , black , green or at your request

PROPERTY

(1). Good flexibility, resistant to corrosion, resistant to acids and alkali, anti-oxidation

(2). Separation, filtration, drainage, reinforcement , protection and maintentance function.

Gram weight	Thickness (mm)	Breaking strength (kn/m)	CBR burst strength (KN)	Elongation at break (%)	Tear Strength (KN)	Sieve size O99(O35)mm
100	0.9	2.5	0.3	25-100	0.08	0.07-2.0
150	1.3	4.5	0.6	25-100	0.12	0.07-2.0
200	1.7	6.5	0.9	25-100	0.16	0.07-2.0
250	2.1	8	1.2	25-100	0.2	0.07-2.0
300	2.4	9.5	1.5	25-100	0.24	0.07-2.0
350	2.7	11	1.8	25-100	0.28	0.07-2.0
400	3	12.5	2.1	25-100	0.33	0.07-2.0
450	3.3	14	2.4	25-100	0.38	0.07-2.0
500	3.6	16	2.7	25-100	0.42	0.07-2.0
600	4.1	19	3.2	25-100	0.46	0.07-2.0
800	5	25	4	25-100	0.6	0.07-2.0

Main properties of geotextiles

1. UV resistant.

2. High temperature resistance to up to 230℃ maintaining structure stability and original physical properties.

3. High flat drainage and vertical permeability.

4. High creep resistance.

5. Resistance of erosion of chemicals in soil as well as thecorrosion of gasoline and diesel etc.

6. High elongation under certain stress, thus able to adapt to uneven and irregular bases.

Benefits of Non Woven Geotextile

Excellent chemical compatibility.

Long-term performance in strength and durability.

Extends road and railway life.

Cost-effective environmental alternative to traditional construction materials.

Prevents banks from soil erosion.

Easy to install.

Applications

Soil separation

Filtration

Erosion & sediment control

Sub-grade stabilization

Protection for geomembrane liners

Shoreline protection

Roadway separation

Railroad stabilization

Subsurface drainage

Containment

Gas venting

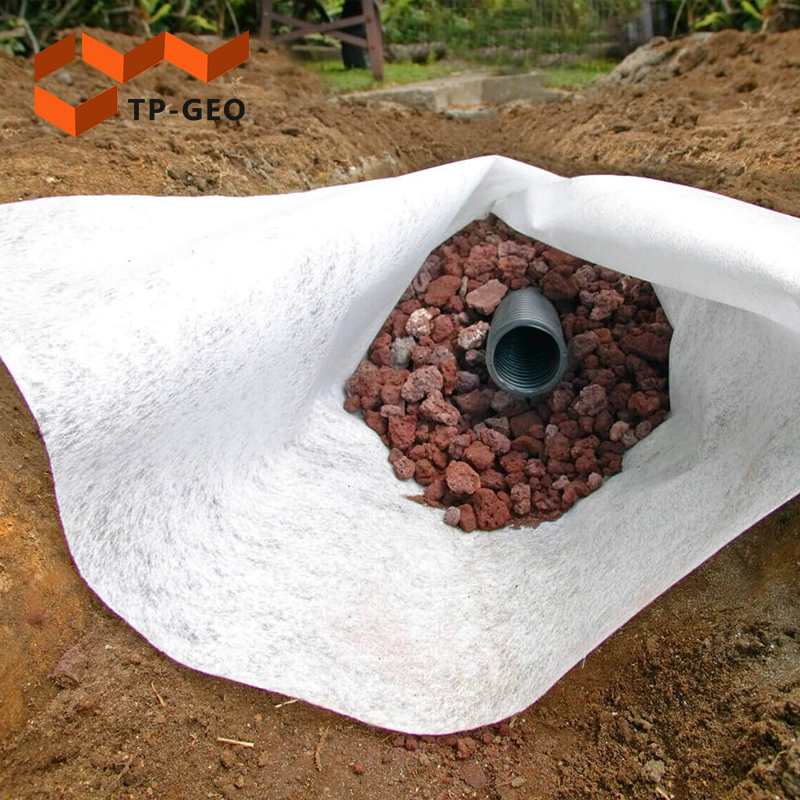

Under riprap or around pipes

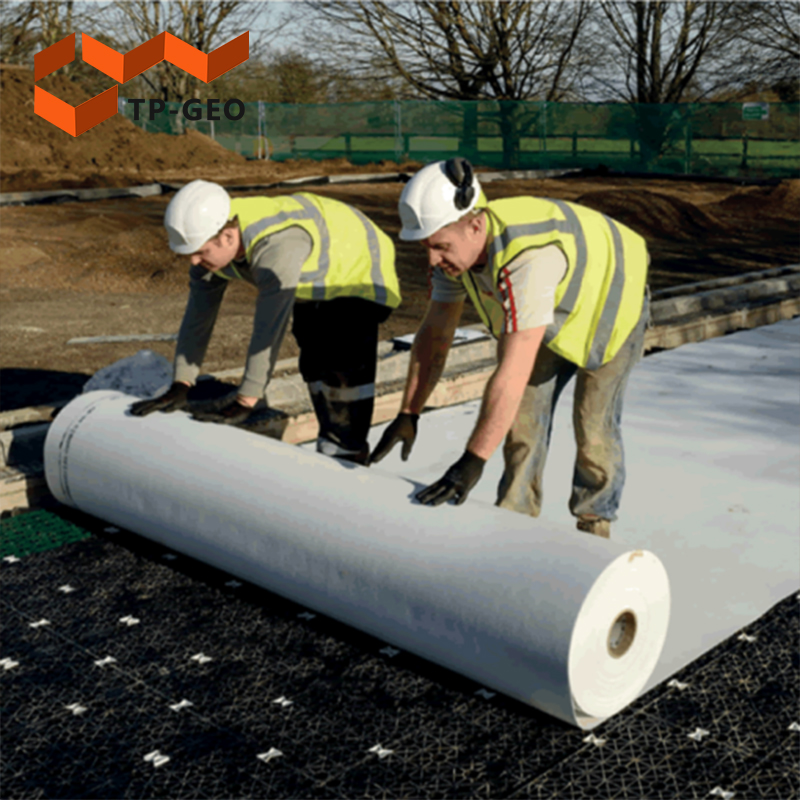

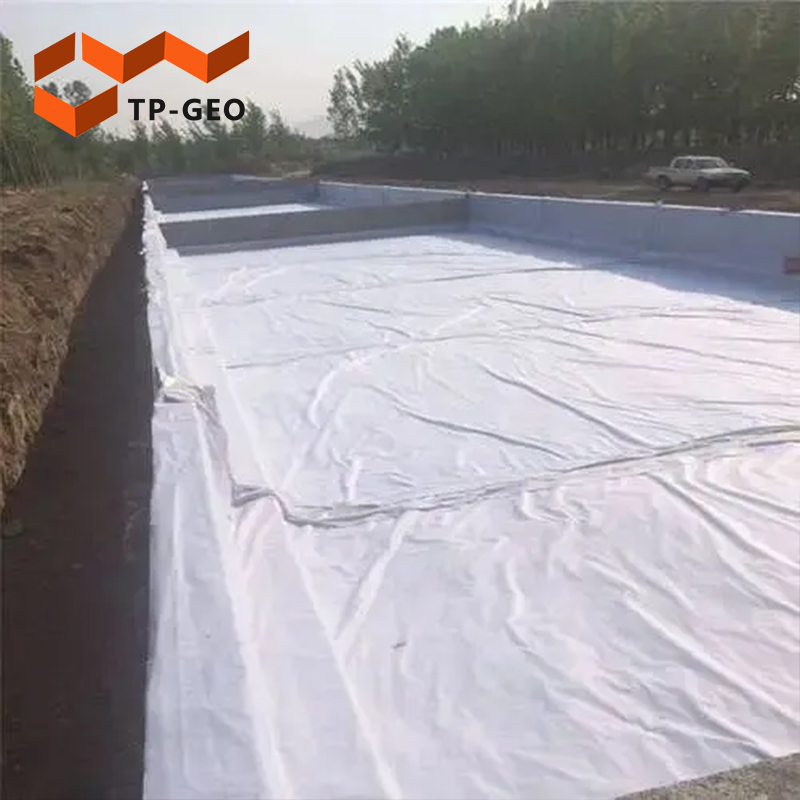

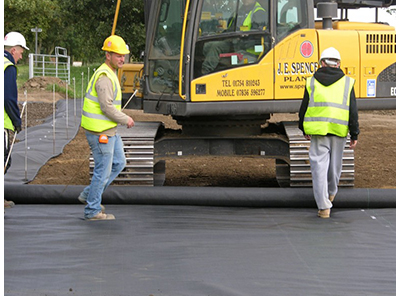

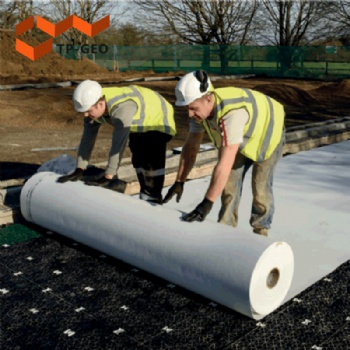

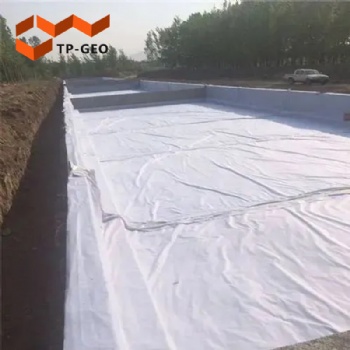

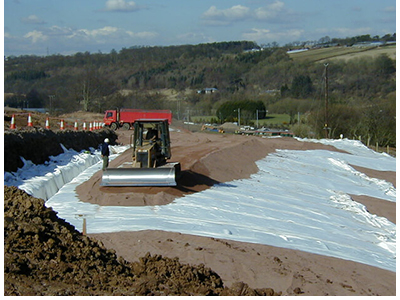

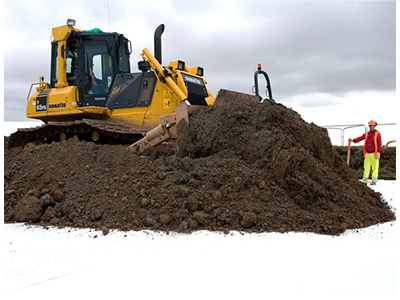

APPLICATION SCENARIO

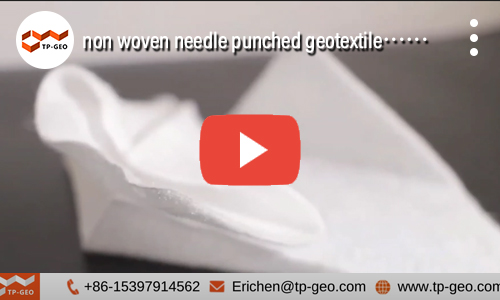

VIDEOS
