Single-sided Textured Geomembranes

Single-sided Textured Geomembranes

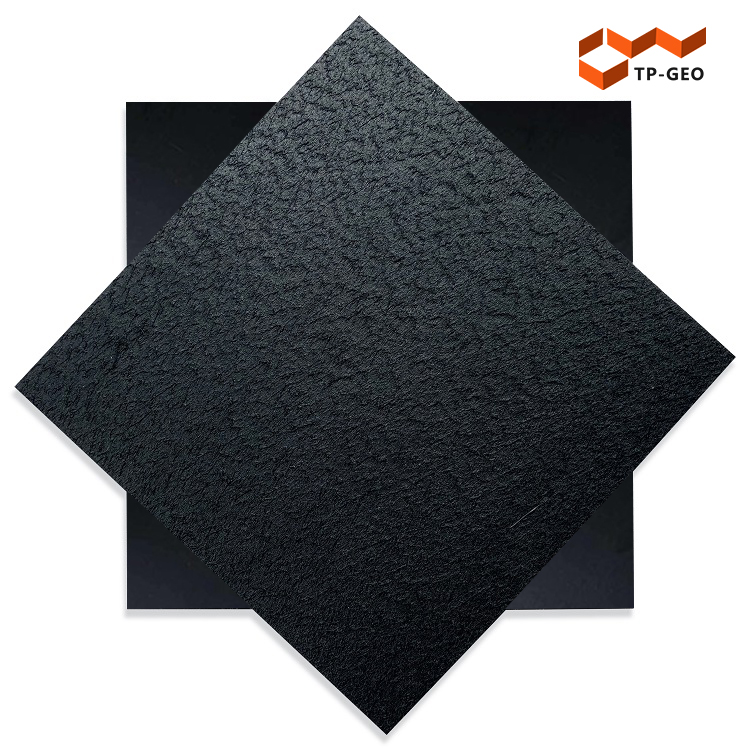

1, TP-GEO Single-sided Textured geomembrane is made of polyethylene resin (PE) as raw material, adding nanoscale carbon black and other additives.

2, With excellent anti-aging, anti-ultraviolet linearity, anti-oxidation, chemical corrosion resistance and resistance to biological enzyme degradation.

3. The rough geomembrane surface is in contact with steep slopes and soil, and has greater friction to ensure that the material does not slip during construction and use

4, Has a large elongation at break and tensile strength

// SORT //

Smooth

Single-sided

Double-sided

// APPLICATION SCENARIO //

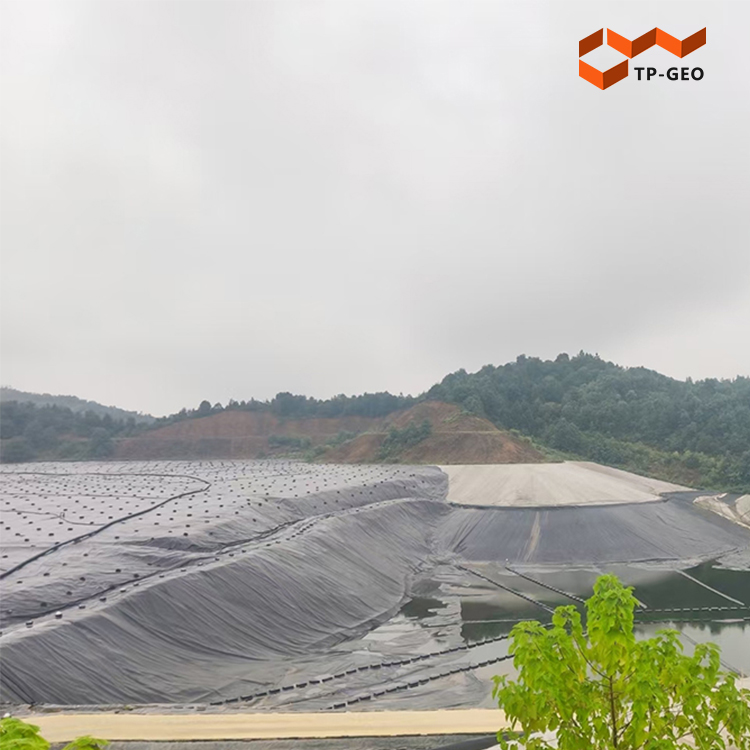

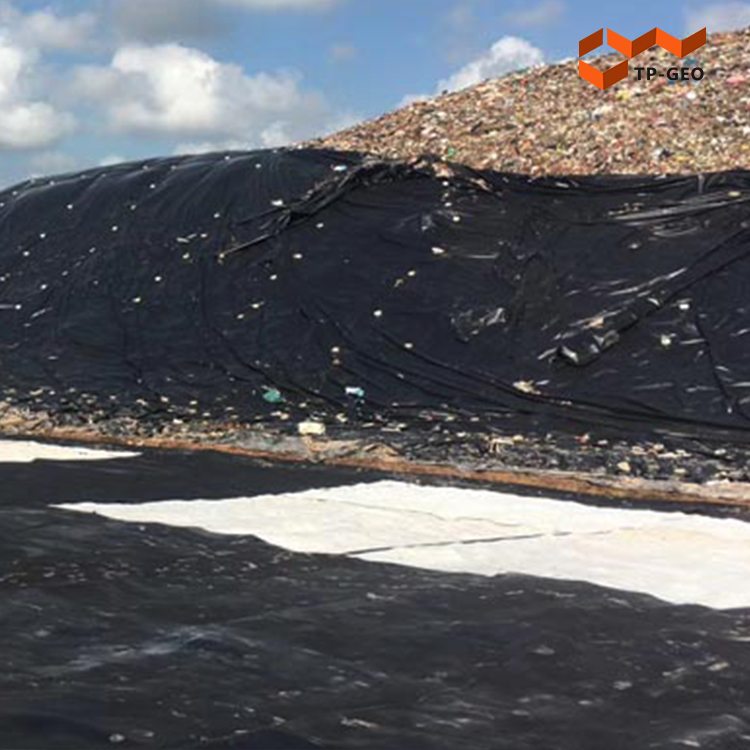

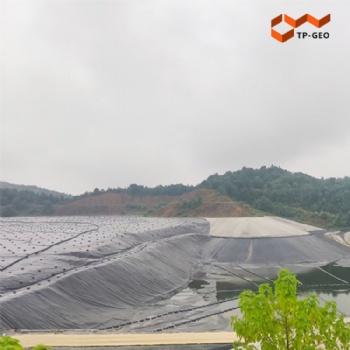

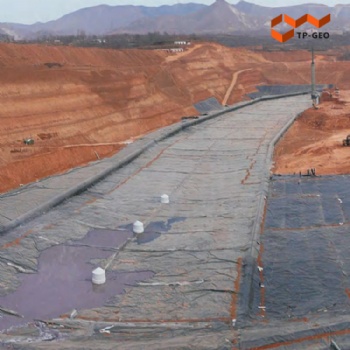

Landfill

Anaerobic digestion ponds

Slag tailing ponds

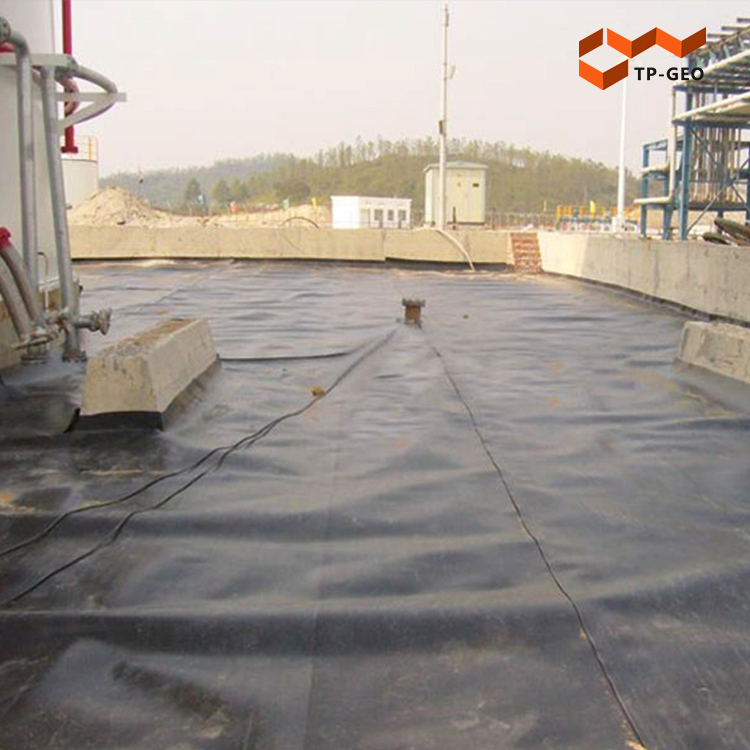

Wastewater lagoon

Swaleswater reservoirs
Cultured fish pondMining heap leach

Slag tailing ponds

// PRODUCT PARAMETER //

HDPE Single-sided Textured (Execute GRI GM-13)

Index

Unit

Test value

1.00mm

1.25mm

1.50mm

2.00mm

2.50mm

3.00mm

Roughness height

mm

0.25

0.25

0.25

0.25

0.25

0.25

Minimum density

g/cm³

0.94

0.94

0.94

0.94

0.94

0.94

Tensile property


Yield strengthstress

N/mm

15

18

22

29

37

44

Breaking strengthstress

N/mm

10

13

16

21

26

32

Yield elongation

%

12

12

12

12

12

12

Elongation at break

%

100

100

100

100

100

100

Right Angle Tearing strength

N

125

160

190

250

315

375

Puncture strength

N

270

335

400

535

670

800

Resistance to environmental stress cracking
(Single point incision dead load stretching method)

H

300

300

300

300

300

300

Carbon black

Carbon black content (range)
Dispersion of carbon black

%

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

2.0-3.0

Oxidation induction time(OIT)

Standard OIT

min

100

100

100

100

100

100

High pressure OIT

min

400

400

400

400

400

400

85 Oven aging (minimum mean)

After 90 days of baking, standard OIT

%

55

55

55

55

55

55

After 90 days of baking,
High pressure OIT

%

80

80

80

80

80

80

Uv resistance

1600 hours of UV exposure, standard OIT

%

50

50

50

50

50

50

1600 hours of UV exposure,
High pressure OIT

%

50

50

50

50

50

50

Impact embrittlement performance at -70


pass

Gas permeability

g·cm/
(c
·s·pa)

1.0x10-13

Dimensional stability


±2

// COMPANY PRESENTATION //未标题-4.jpg// EQUIPMENT //未标题-3.jpg// LABORATORY //未标题-1.jpg// HONOR //

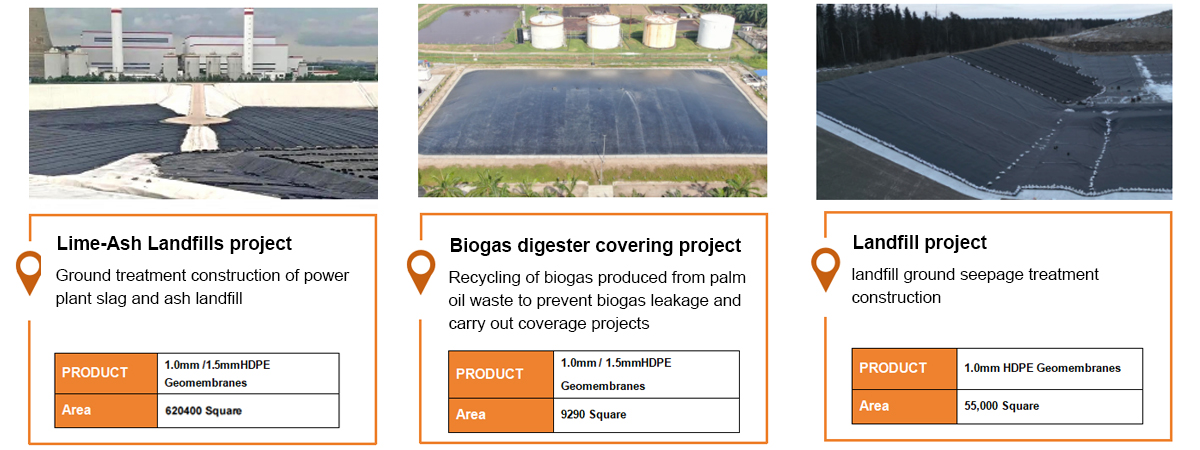

// PROJECT ENGINEERING //



Engineering case

Supply product

1

Coal power project ash landfill project

1.0mm HDPE Geomembranes

2

Potassium salt seepage control system engineering

1.0mm HDPE Geomembranes

3

Smelter industrial waste water tank seepage prevention project

2.0mm HDPE Geomembranes

4

Chemical gypsum slag field seepage prevention project

1.5mm HDPE Geomembranes

5

Calcium free chromium residue wet detoxification and chromium recovery project

2.0mm HDPE Geomembranes

6

Urban waste comprehensive treatment site upgrade project

1.0mm HDPE Geomembranes

7

Solid waste disposal center safe landfill site

1.5mm2.0mm HDPE Geomembranes

8

Sewage diversion and biogas diversion project of domestic waste landfill

2.0mm HDPE Geomembranes

9

Industrial solid waste disposal center project

2.0mm HDPE Geomembranes

10

Livestock and poultry waste disposal and utilization project top membrane project

1.0mm HDPE Geomembranes

11

Heavy metal waste resource harmless disposal project rigid landfill project

2.0mm HDPE Geomembranes

12

Power plant dust ash landfill project

1.0mm1.5mm HDPE Geomembranes

13

Solid waste ash project in landfill reservoir area

1.0mm1.5mm HDPE Geomembranes

14

landfill storage pool covering project

2.0mm HDPE Geomembranes

15

Emergency landfill project Geotechnical material laying project in the second landfill area

1.5mm 2.5mm HDPE Geomembranes

The project is constantly updated
