GEOCELL Retaining Walls

GeoCells were invented in the early 80’s and patented by the United States Army Corps of Engineers to stabilize soft soils and construct toads for heavy load application.  Since their inception, they are now used for various civil applications such as slope and channel protection and retaining walls.

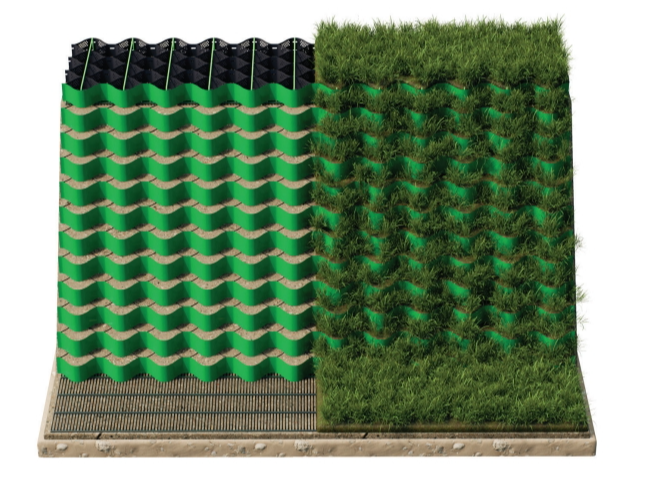

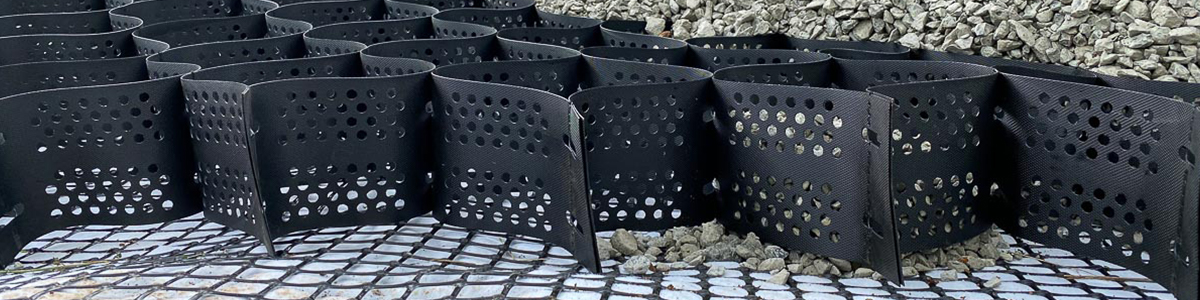

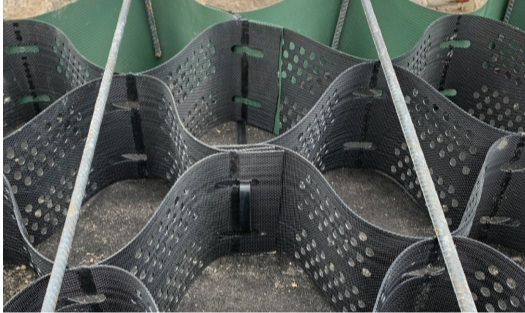

For retaining walls the GeoCells can be used for both cut and fill applications. The flexible HDPEpanels are custom made to the front to back dimensions required by the project engineer. The panels are 6” or 8” tall and typically expand 2.85’ into the wall.The walls are further reinforced using a uniaxial grid embedded further into the wall every 3-4 layers of GeoCell. The GeoCells can be easily installed around curves and pipes or other structures.The GeoCell panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. The GeoCell panels can be stacked to create a 90 degree wall or they can be stair stepped at every layer to create 3-4 inches of exposed cell for vegetation. The GeoCells are theperfect green wall solution
